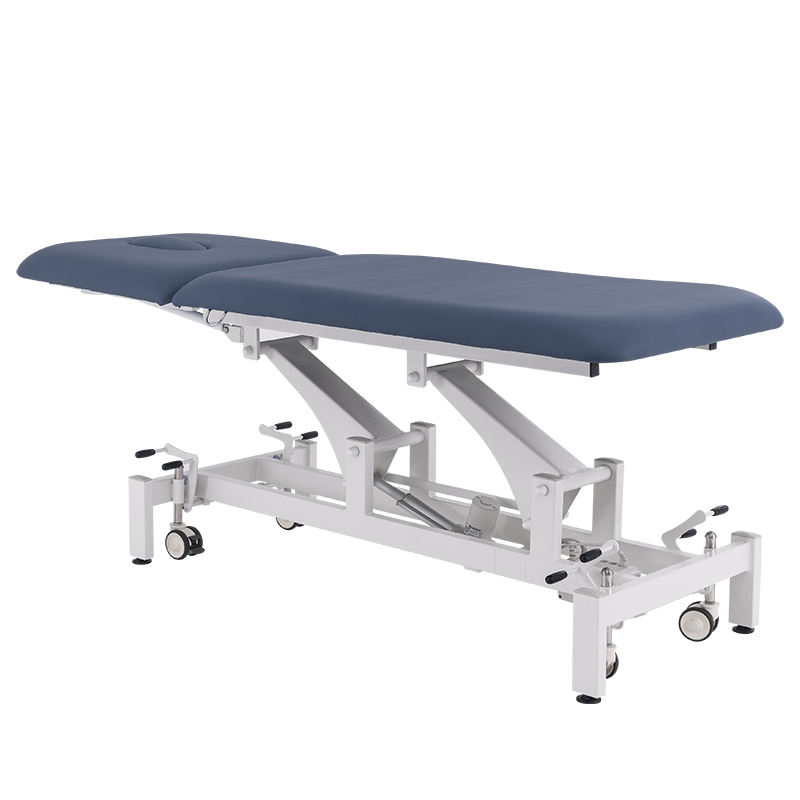

The Electric Physical Therapy Table is an electrically adjustable bed designed specifically for physical therapy and rehabilitation training. Driven by a motor, it allows for stepless adjustment of the bed's height and angle, replacing traditional hand-cranked or fixed bed frames, providing a stable and safe operating platform for therapists and patients. Comprising a steel frame, high-density foam padding, antibacterial leather, and silent casters, it complies with electrical safety regulations for medical equipment and is widely suitable for use in rehabilitation departments, physical therapy rooms, sports medicine centers, and other settings. It is a core component of modern physical therapy systems.
Item No: 8901
Motors: 1
Bed size: 188*68*8(cm)
Bed lifting: 47-91(cm)
Head adjustment: -45~+90°
N.W: 53(Kgs)
Dynamic maximum load: 160(Kgs)
Nominal voltage and frequency: AC220V, 50HZ
Power input: 500VA
Height adjusted by motor, backrest adjusted by gas lift.
1. Quiet and Steady Rise:
The height-adjustable Electric Physical Therapy Table features a built-in 500W medical-grade silent motor, producing no-load noise ≤45 dB. It offers a lifting range of 47-91 cm, a travel speed of 25 mm/s, and remains stable and shake-free even under a dynamic load of 160 kg. A single-touch height memory and repeatability of ±2 mm allow therapists to quickly switch positions without bending over, reducing back strain.
2. Easy Recline:
The table's backrest is adjustable using an EN 455-3-certified medical gas spring, offering stepless locking from -45° to +90°. It supports a maximum load of 80 kg and can be adjusted with a single-handed lever in under 3 seconds. Combined with the 188×68 cm tabletop, therapists can flexibly adjust the patient's position, enhancing joint mobilization and myofascial release.
3. Stable Steel Frame:
The entire bed is constructed from 2mm thick Q235 carbon steel welded together, with an epoxy electrostatically sprayed surface and salt spray tested for ≥500 hours. The frame has a static load-bearing capacity of 300 kg, and with triangular reinforcement ribs, it maintains deformation of ≤1 mm even after long-term use, ensuring the safety and durability of the Electric Physical Therapy Table in high-frequency impact scenarios.
4. Antibacterial and Skin-Friendly:
The 8cm high-density slow-rebound memory foam with a density of 55 kg/m³ and a rebound time of 3-5 seconds effectively distributes pressure. The outer layer is constructed from ISO 22196 antibacterial PVC leather with an antibacterial rate of ≥99%. It has also passed the EN 71-3 non-toxicity test and can be directly wiped with 75% alcohol, ensuring the hygienic standards of the Electric Physical Therapy Table even when used by multiple people.
5. Flexible Casters:
75 mm medical-grade PU-coated double-brake casters pass the EN 12532 rolling resistance test and have a single wheel load capacity of 60 kg. A single tap of the central brake locks all four wheels simultaneously, resulting in a quieter ride of ≤40 dB and a rolling resistance of ≤20 N, allowing the Electric Physical Therapy Table to be easily moved between clinics, elevators, and hallways without scratching the floor.
1. Rehabilitation Training Center:
The Electric Physical Therapy Table is located in a spacious rehabilitation hall. Based on the assessment reports of patients undergoing hemiplegia or fracture surgery, therapists can lower the table to 47 cm for easy transfer and then raise it to 80 cm for standing balance training. Combined with the suspension system, a multi-stage program, including gait and core muscle activation, can be implemented, shortening treatment sessions by 30%.
2. Sports Injury Clinic:
Professional athletes require rapid recovery from minor muscle injuries after competition. Physicians adjust the Electric Physical Therapy Table to a height of 65 cm and perform lower limb lymphatic drainage techniques in a -15° head-down position. The 90° upright position is used for patellar mobilization, and a 160 kg dynamic load is suitable for even heavier athletes, ensuring continuous treatment during competition cycles.
3. Community Elderly Care Station:
With the introduction of the Height Adjustable Electric Physical Therapy Table at primary health centers, elderly patients with chronic neck, shoulder, lower back, and leg pain can receive medical insurance-reimbursed physical therapy nearby. The low 47 cm height facilitates wheelchair-bound patients to move horizontally onto the bed, and the antibacterial leather reduces cross-infection. The three-times-weekly traction and electrical stimulation sessions significantly improve community quality of life.
4. High-End Spa:
In the tranquil aromatherapy room, the Electric Physical Therapy Table features a silent motor and soft memory foam to create a zero-pressure space. Depending on the essential oil treatment, therapists raise the table to 75 cm, allowing for a 45° semi-reclining position for deep neck and shoulder relaxation. Locking the PU casters eliminates rocking, enhancing the intimate care experience for high-net-worth clients.
5. Veterinary Rehabilitation:
Post-operative corgis and large dogs require range of motion training. The Electric Physical Therapy Table's lowest position of 47 cm facilitates easy access. The antibacterial leather resists scratching and biting. Therapists use a -30° head-down position to reduce lumbar pressure, then adjust it to 60 cm for pre-therapy drying and grooming. This integrated design reduces stress on animals.
Our Electric Physical Therapy Table can support up to 180 kg, making it suitable for a wide range of patients. Its reinforced frame ensures stability during all types of therapy sessions, providing both safety and durability.
Yes, the Electric Physical Therapy Table offers adjustable height and angle settings to cater to different exercises and treatments. This feature allows therapists to easily modify the table based on patient needs and specific therapy protocols.
The Electric Physical Therapy Table is designed with easy maintenance in mind. Its high-quality upholstery is resistant to stains and easy to clean, ensuring a hygienic environment in clinics and rehabilitation centers.
Yes, as a leading Electric Physical Therapy Table manufacturer, we offer customizable options, including table size, upholstery color, and additional features to meet the specific needs of your clinic or rehabilitation center.
We provide a standard 2-year warranty on all Exercise Tables for Physical Therapy. This covers any manufacturing defects, ensuring that you receive a reliable and long-lasting product.
